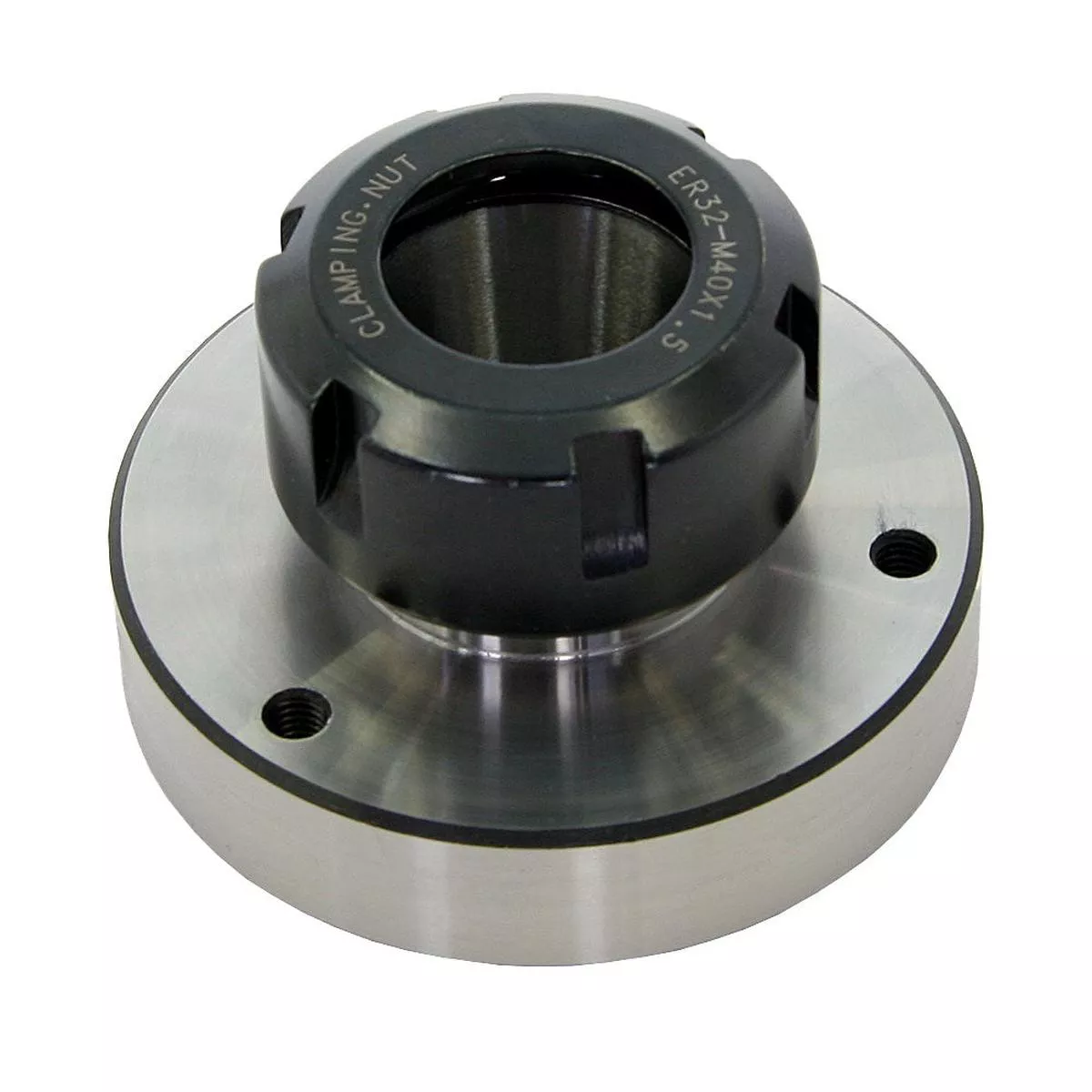

Collet Chuck, ER-32, 3″ Diameter

Sale!
Collet Chuck, ER-32, 3″ Diameter

Collet Chuck, ER-32, 3″ Diameter

Original price was: $35.98.Current price is: $26.17.

37 in stock

SKU: HARD-9574CA Category:

Description

This 3 diameter ER-32 collet chuck mounts on the lathe spindle in place of the lathe chuck or can be used as a fixture on a milling table.ER collet chucks range in size from 3/32″ up to 13/16″ so you can run 25/32″ (the through hole on the lathe spindle is 0.800″) stock through the headstock of your mini lathe.The outside diameter of the lathe collet chuck is 80 mm. It has a 55 mm registration diameter and mounts with three M6 bolts on a 66 mm bolt circle. The concentricity of this chuck is 0.0016″ (0.02 mm).*Collet must be assembled into a collet chuck nut before inserting into the collet chuck.
